Details
What You Need
Full-tilt-boogie trail capability meets hardtail purity and simplicity. That's the beauty of Habit HT. Minimum fuss. Maximum fun.
Model Description

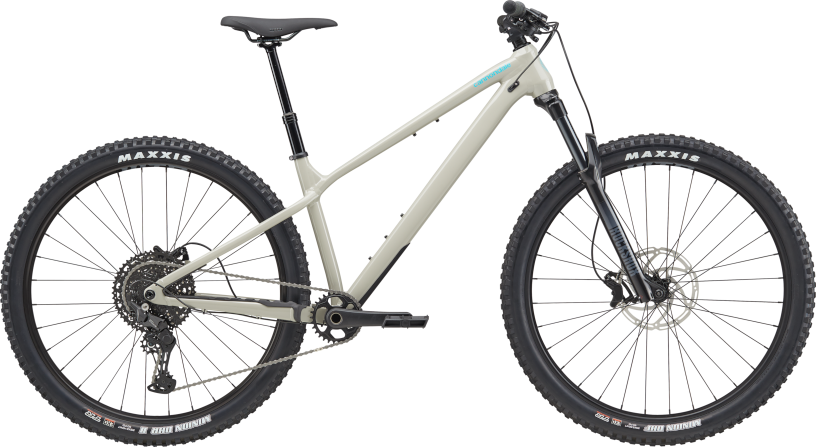

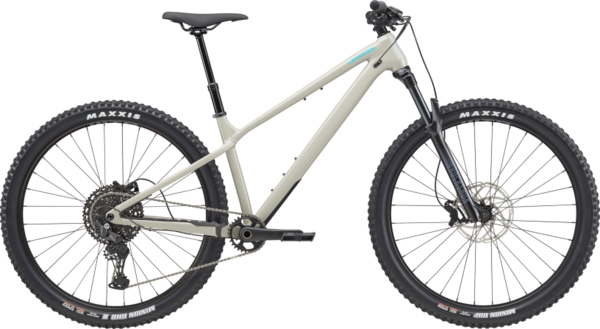

The Habit HT 1 is a banger. Modern trail capability wrapped in hardtail simplicity – everything you need to let loose. It’s got a burly aluminum frame with progressive trail geometry, wide 29” wheels wrapped in rowdy rubber, and a 130mm RockShox Recon Silver RL fork up front. With wide-range Shimano CUES 11-speed gearing, the massive stopping power of Tektro Gemini 4-piston brakes, and a dropper post, it’s always up to get down.
What it's for
- Full-throttle trail riding and good times in the dirt
Highlights:
- A light and durable SmartForm C2 Alloy frame, backed by a lifetime warranty
- A RockShox Recon Silver RL Boost fork with 130mm of travel, Solo Air spring, and Motion Control damper
- Wide-range Shimano CUES U6000 1x11-speed shifting
- Super powerful braking from Tektro Gemini 4-piston brakes with 203mm front and 180mm rear rotors
- WTB ST i30 rims with 30mm inner width, wrapped in Maxxis Minion DHF/DHR tubeless-ready tires
- Light and reliable TranzX dropper seatpost
SM | MD | LG | XL | |
---|---|---|---|---|
Wheel Size | 29" | 29" | 29" | 29" |
Seat Tube Length (cm) | 38.0 | 40.0 | 44.0 | 48.0 |
Top Tube Horizontal (cm) | 57.3 | 60.0 | 62.8 | 66.5 |
Top Tube Actual (cm) | 56.9 | 58.9 | 60.3 | 62.9 |
Head Tube Angle | 64.0° | 64.0° | 64.0° | 64.0° |
Seat Tube Angle | 75.4° | 75.0° | 73.8° | 72.7° |
Seat Tube Angle Effective | 76.0° | 76.0° | 76.0° | 76.0° |
Standover (cm) | 71.0 | 73.0 | 74.0 | 76.0 |
Head Tube Length (cm) | 11.0 | 12.0 | 13.0 | 14.0 |
Wheelbase (cm) | 117.7 | 120.6 | 123.5 | 127.5 |
Front Center (cm) | 74.2 | 77.1 | 80.1 | 84.0 |
Chain Stay Length (cm) | 44.0 | 44.0 | 44.0 | 44.0 |
Bottom Bracket Drop (cm) | 5.5 | 5.5 | 5.5 | 5.5 |
Bottom Bracket Height (cm) | 32.5 | 32.5 | 32.5 | 32.5 |
Fork Rake (cm) | 4.4 | 4.4 | 4.4 | 4.4 |
Trail (cm) | 13.2 | 13.2 | 13.2 | 13.2 |
Stack (cm) | 63.4 | 64.3 | 65.3 | 66.2 |
Reach (cm) | 41.5 | 44.0 | 46.5 | 50.0 |
Small | 5'1" | 5'5" |
---|---|---|
Medium | 5'4" | 5'9" |
Large | 5'8" | 6'0" |
X-Large | 5'11" | 6'5" |
Part Numbers
Option | UPC | MPN |
---|---|---|
Tiger Shark / Small / 29-inch | 196870182837 | C26075U10SM |
Tiger Shark / Medium / 29-inch | 196870182844 | C26075U10MD |
Tiger Shark / Large / 29-inch | 196870182851 | C26075U10LG |
Tiger Shark / X-Large / 29-inch | 196870182868 | C26075U10XL |
Tungsten Blue / Small / 29-inch | 196870185395 | C26075U20SM |
Tungsten Blue / Medium / 29-inch | 196870185401 | C26075U20MD |
Tungsten Blue / Large / 29-inch | 196870185418 | C26075U20LG |
Tungsten Blue / X-Large / 29-inch | 196870185425 | C26075U20XL |
